What Special Load Capacity Requirements Does Your Equipment Have for Linear Bearings

The smooth operation of your equipment often depends on how well you match the load capacity of linear bearings to actual working conditions. Standard models work fine for normal use, but once your application involves heavy loads or unusual force directions, a bearing that is “just good enough” may fail prematurely. Here are several factors to evaluate when determining your special load capacity needs.

1. Identify the type of force your equipment applies

Loads on linear bearings fall into two main categories: radial loads – perpendicular to the direction of motion (e.g., table weight, workpiece mass); and axial loads – along the motion direction, common in vertical lifts or side‑pushes. Flanged linear bearings offer better stability under combined loads because of their larger mounting surface. Extended‑length linear bearings have more rolling elements, which improves resistance to off‑center or moment loads. If your equipment has a cantilever structure or the center of gravity shifts, an overturning moment is generated. In such cases, the bearing’s allowable static moment must be checked during selection.

2. Ball vs. roller: contact geometry defines load limits

Ball linear bearings use point contact between balls and raceways. They offer low friction and suit high‑speed operation, but stress concentration occurs under heavy loads. Roller linear bearings use line contact, providing a larger contact area and therefore higher load capacity for the same envelope size, though they have higher friction and lower speed limits. For heavy‑load, high‑rigidity applications, roller‑type bearings are often a better choice. If a ball bearing design must be kept for compactness, choose an extended‑length or high‑ball‑count series to increase contact points.

3. Operating environment derates the bearing’s capacity

The basic dynamic load rating and basic static load rating printed in catalogs are measured under ideal conditions. In reality, correction factors for hardness, temperature, and contamination directly affect the usable load. When guide rail surface hardness drops, the basic load rating reduces proportionally. High‑temperature environments require a temperature factor to adjust the equivalent load rating. In dusty or coolant‑splashed conditions, proper sealing is necessary to maintain the bearing’s designed load capacity.

4. Match bearing type to equipment characteristics

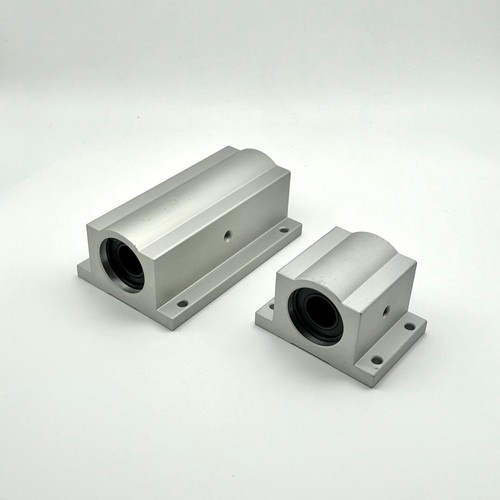

If your equipment regularly experiences side loads or moment forces, extended‑length linear bearings provide better overturning resistance, while flanged types help spread the moment. Open‑type linear bearings allow easy clearance adjustment, but their open side is weaker and should not face the main load direction. For installations with limited space or alignment difficulty, self‑aligning linear bearings can compensate for minor misalignment, preventing premature failure due to uneven loading.

Selecting the right load capacity begins with understanding the real force patterns and operating boundaries of your equipment, then choosing the bearing type and size accordingly. When you know your equipment’s “temper,” you can avoid mismatches and ensure stable, long‑term operation.
