Small Cylinder, Big Impact: How Linear Bearings Achieve Low-Friction Precision Motion

Linear bearings are indispensable core components in modern industrial equipment. Through their unique structural design, they convert traditional sliding friction into rolling friction, reducing friction resistance to approximately 1/100 of sliding friction and enabling high-precision linear motion.

Precision Structure: Five Core Components Working in Harmony

The performance of linear bearings stems from the precise coordination of five key components: the guide shaft provides a high-straightness reference with precisely controlled surface roughness; the ball cage distributes balls evenly to prevent collision and misalignment; the balls serve as the core medium for point-contact rolling friction; the outer shell provides structural support and internal raceway; and the seal ring blocks contaminants to maintain lubrication. The precision of each component directly impacts the final motion quality.

Materials and Models: Covering Global Market Needs

In terms of materials, bearing steel offers cost-effectiveness and wear resistance, stainless steel provides rust and corrosion resistance, and aluminum alloy enables lightweight design. Structurally, the standard type saves space, the flange type facilitates installation, and the open type allows adjustable clearance. For international standards, the LM series (common in Asia) and LME series (European and American standards) cover global markets.

Critical Installation: Align Center, Insert Slowly

Proper installation directly affects bearing lifespan. The industry-recognized practice is: when inserting the guide shaft into the linear bearing, always align the center and insert slowly. Improper operation can cause balls to fall out or cage deformation. Additionally, linear bearings are not designed for rotational motion — forced rotation may cause accidents. For lubrication, when using grease, first remove the factory anti-corrosion oil with kerosene; for oil lubrication, direct application is acceptable. Temperature tolerance depends on cage material: resin cages are limited to 80°C, steel cages withstand up to 120°C, and stainless steel bearings can handle 200°C.

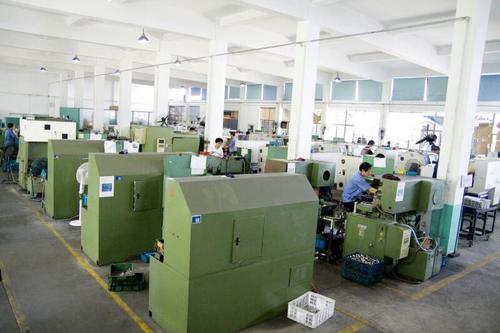

‍Founded in 1997, NINGBO HENGLI AUTOMOBILE PARTS& BEARING CO.,LTD. is a leading manufacturer specializing in linear motion bearings, shafts and guide rails. ISO9001 certified with 45+ patents, our HL brand products are trusted by global companies including Panasonic and Westinghouse, serving photovoltaic, packaging and injection molding industries worldwide.‍
